lest see all the home made dog boxs

[scdoghunter]

hi i am looking for pics of home made dog boxes as well as mitrails list would perfur one made out of wood thanks for any help

[tman308]

I have two boxes, one is for the summer and the other is for winter which only last about 2 months here.

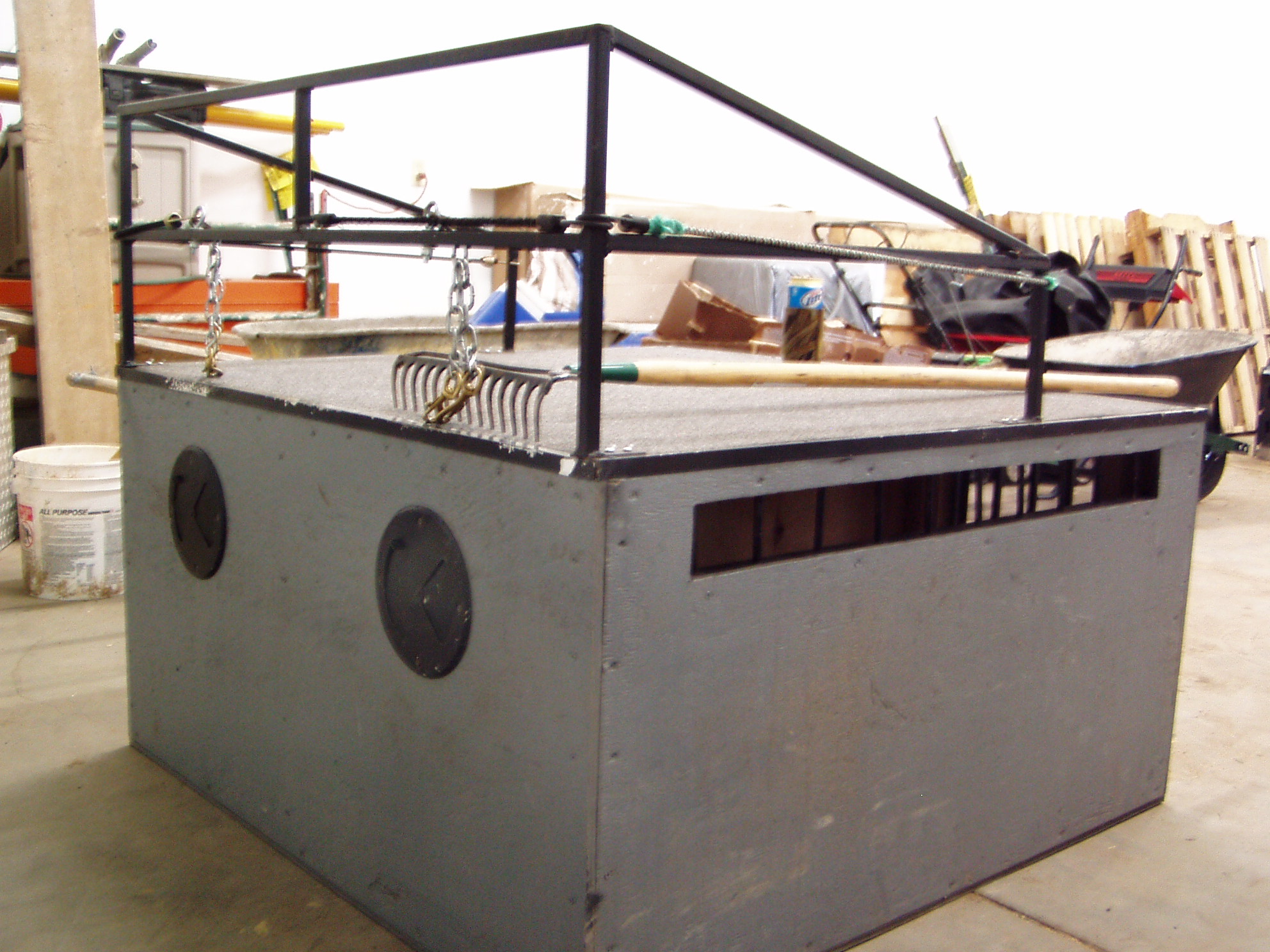

Summer box

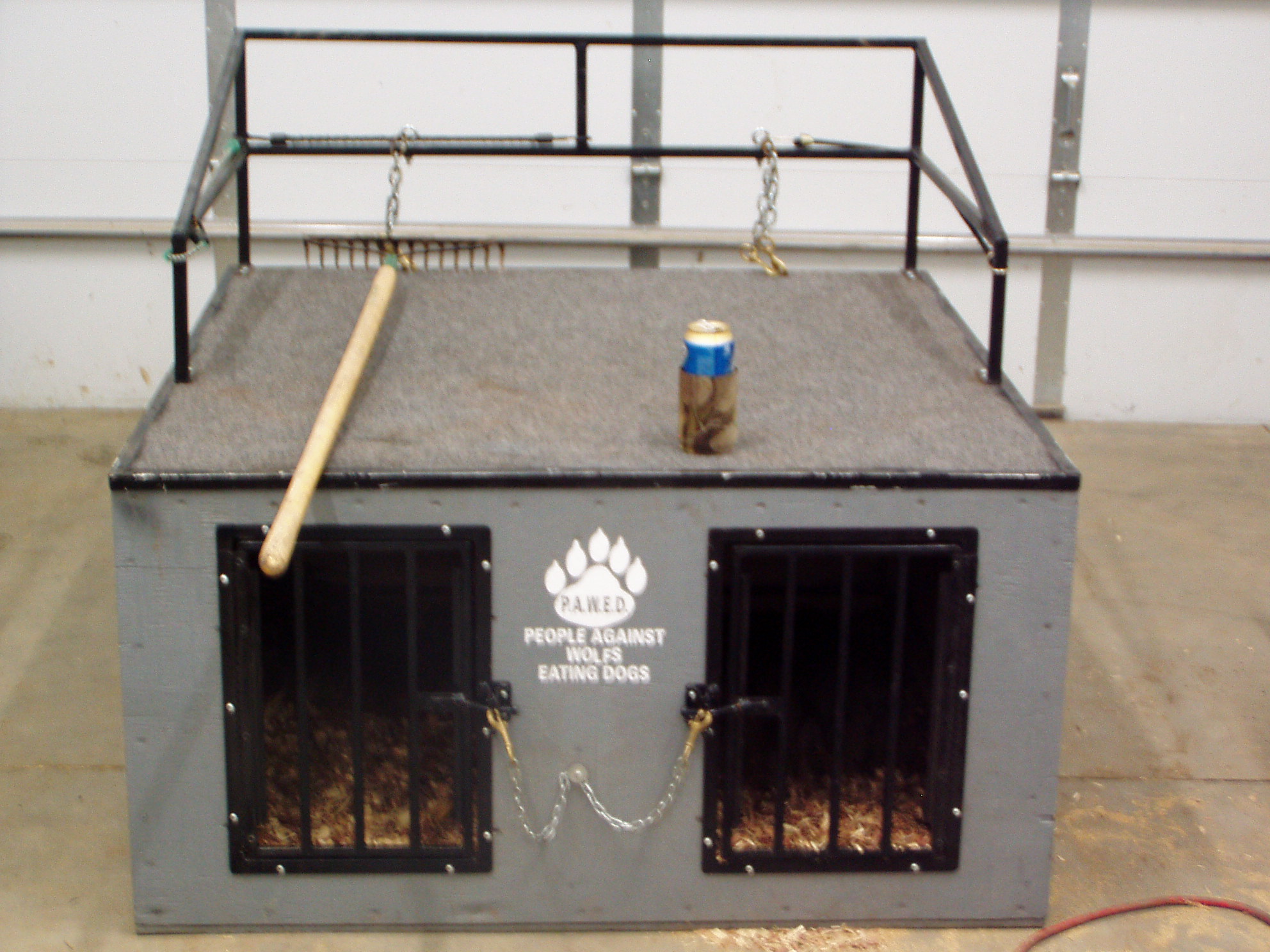

Winter Box


The winter one is mostly wood with a steel frame. The summer one is mostly steel with a wood platform.
I made both of them so I could load and unload by myself.

Those are mine.

[livetohunt]

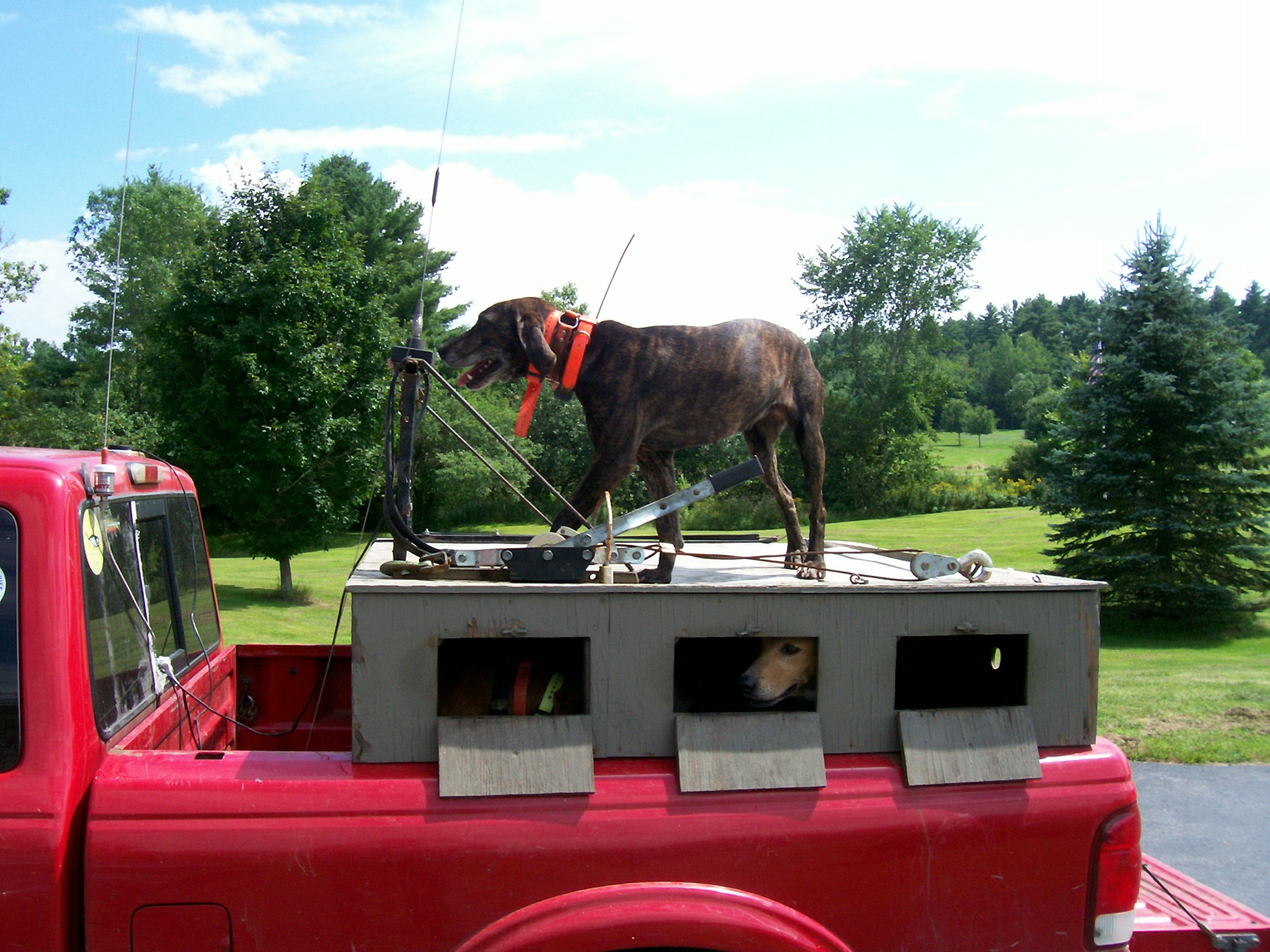

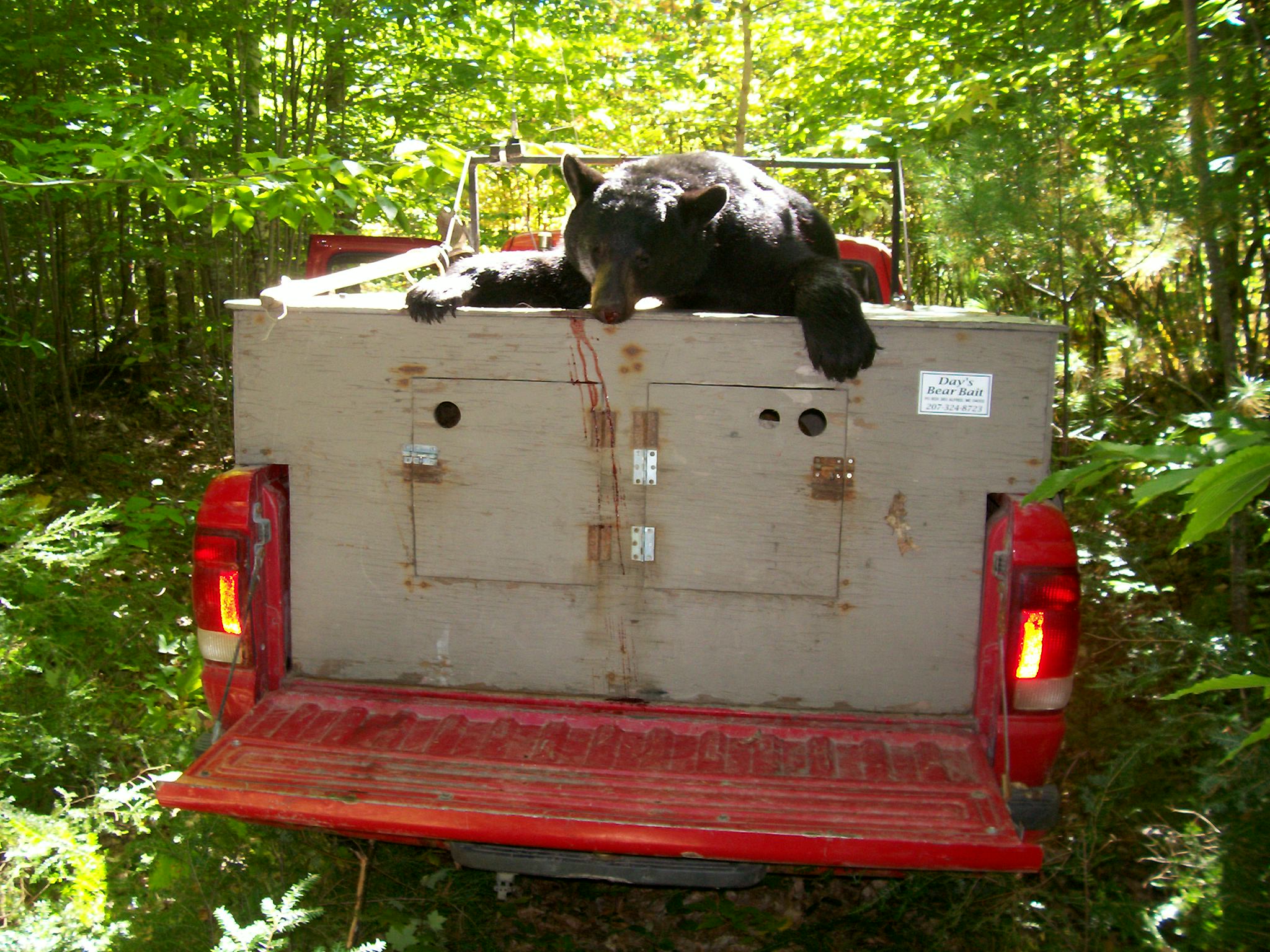

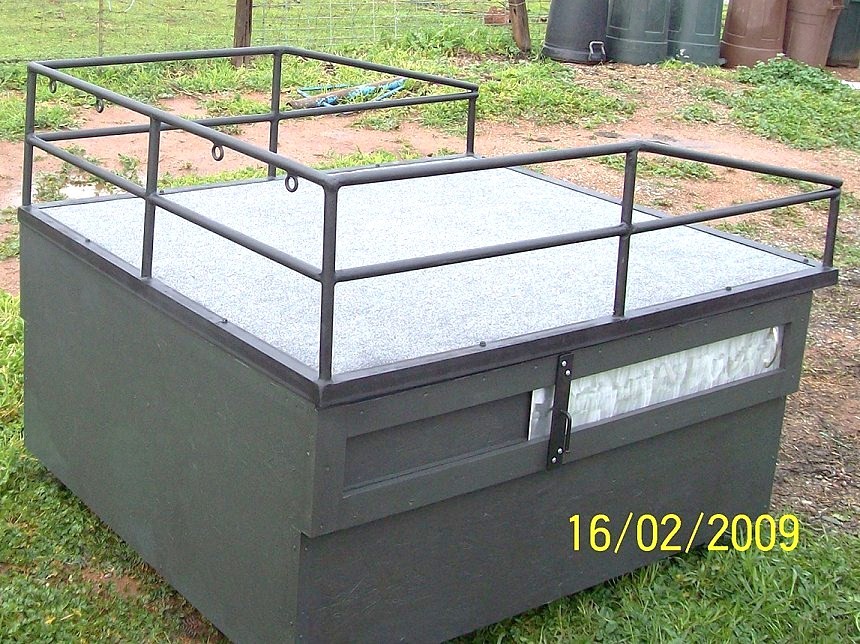

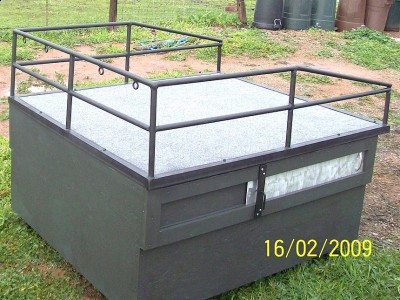

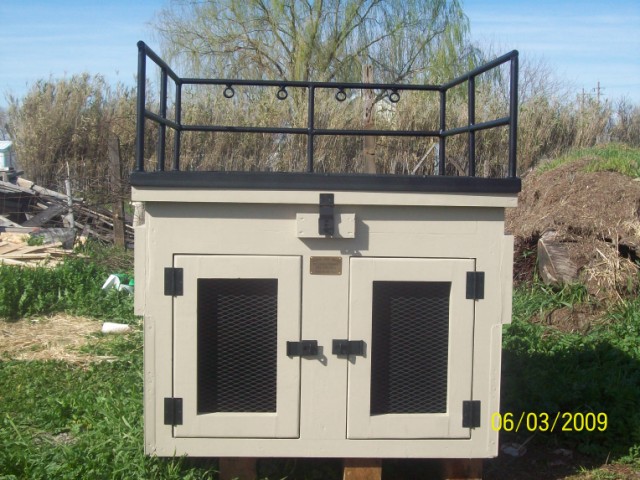

Here is some for you I make they are made from wood.

[Jeff Eberle]

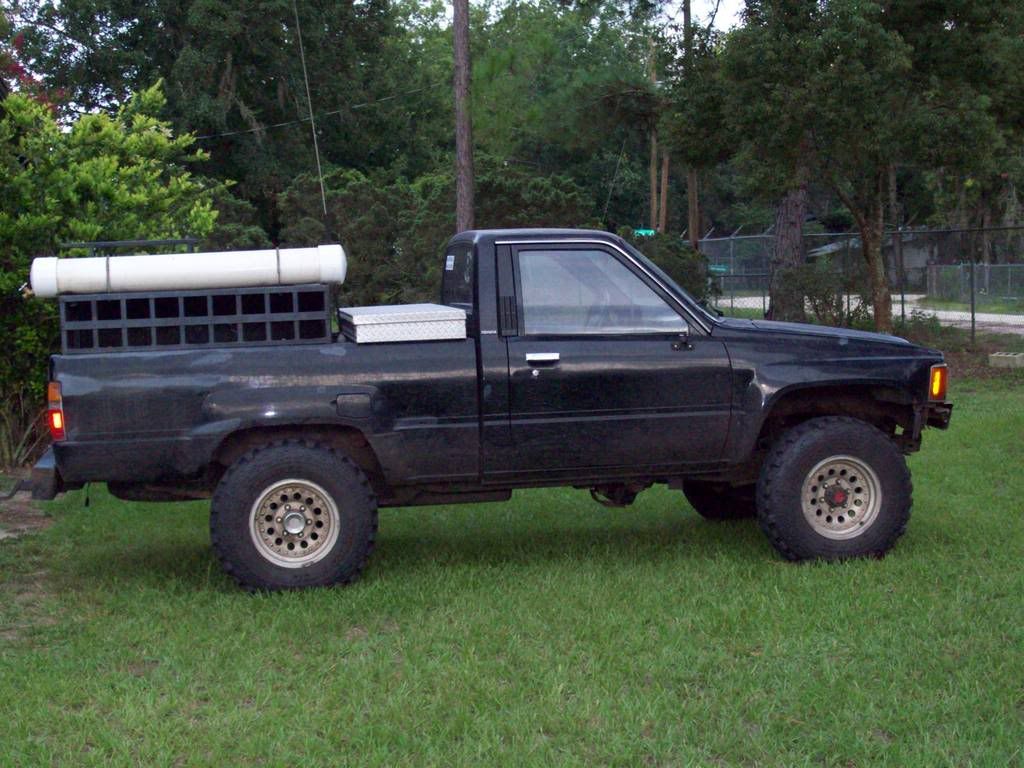

made this one. it's all metal with 1/2 plywood deck. and is 115 lbs.

[Huntintony]

Jeff, did you ever get a hold of Josh? Still havent heard from him. Just worried.

Tony

Sorry to hijack post,,,,

[arizonabeagle]

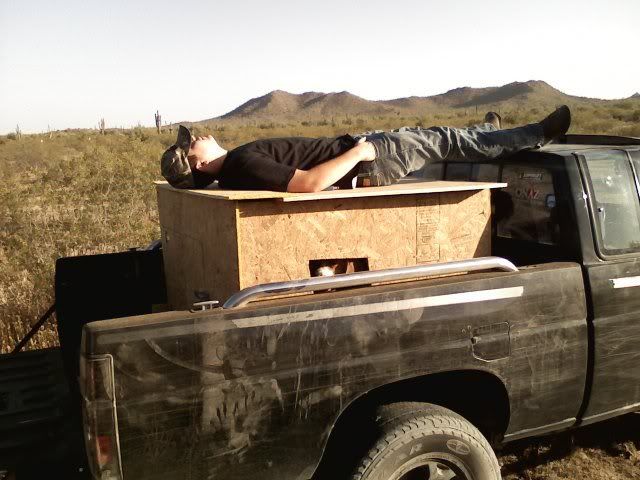

the only one i gots of me layin on it haha
took me and a buddy about 20 minutes to build



we made it shorter since this picture because he sold his big english dog
enjoy!

[M Evertsen]

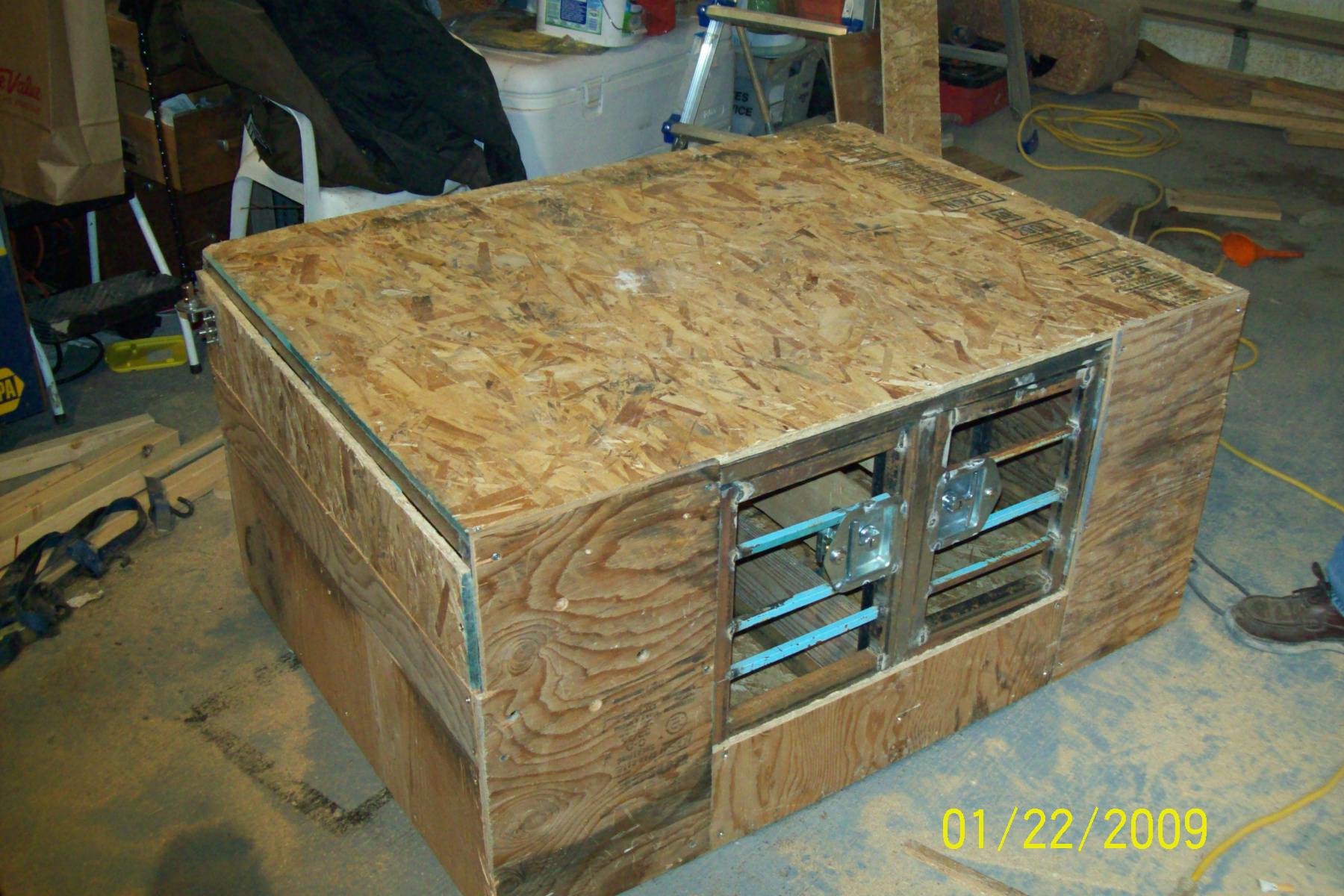

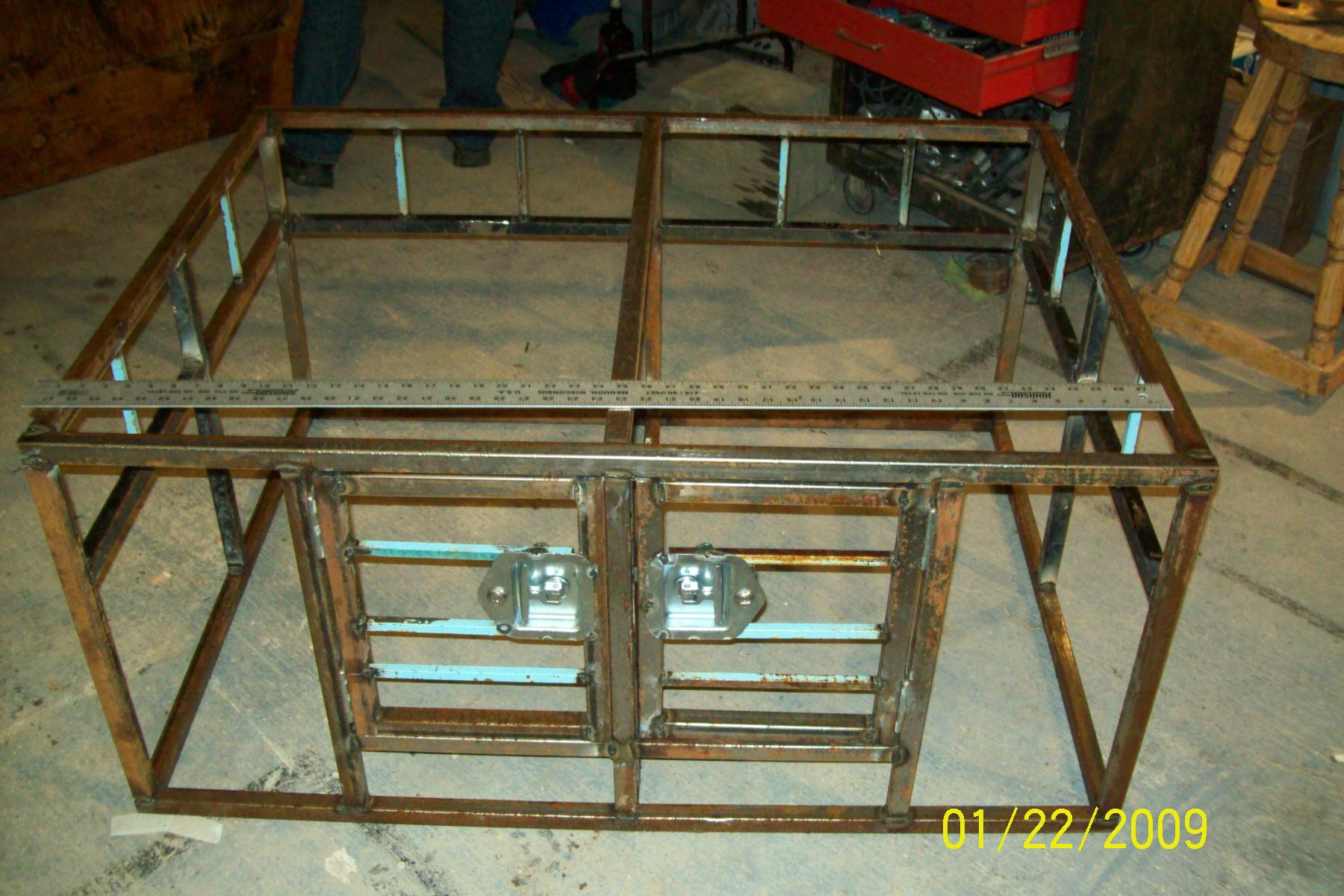

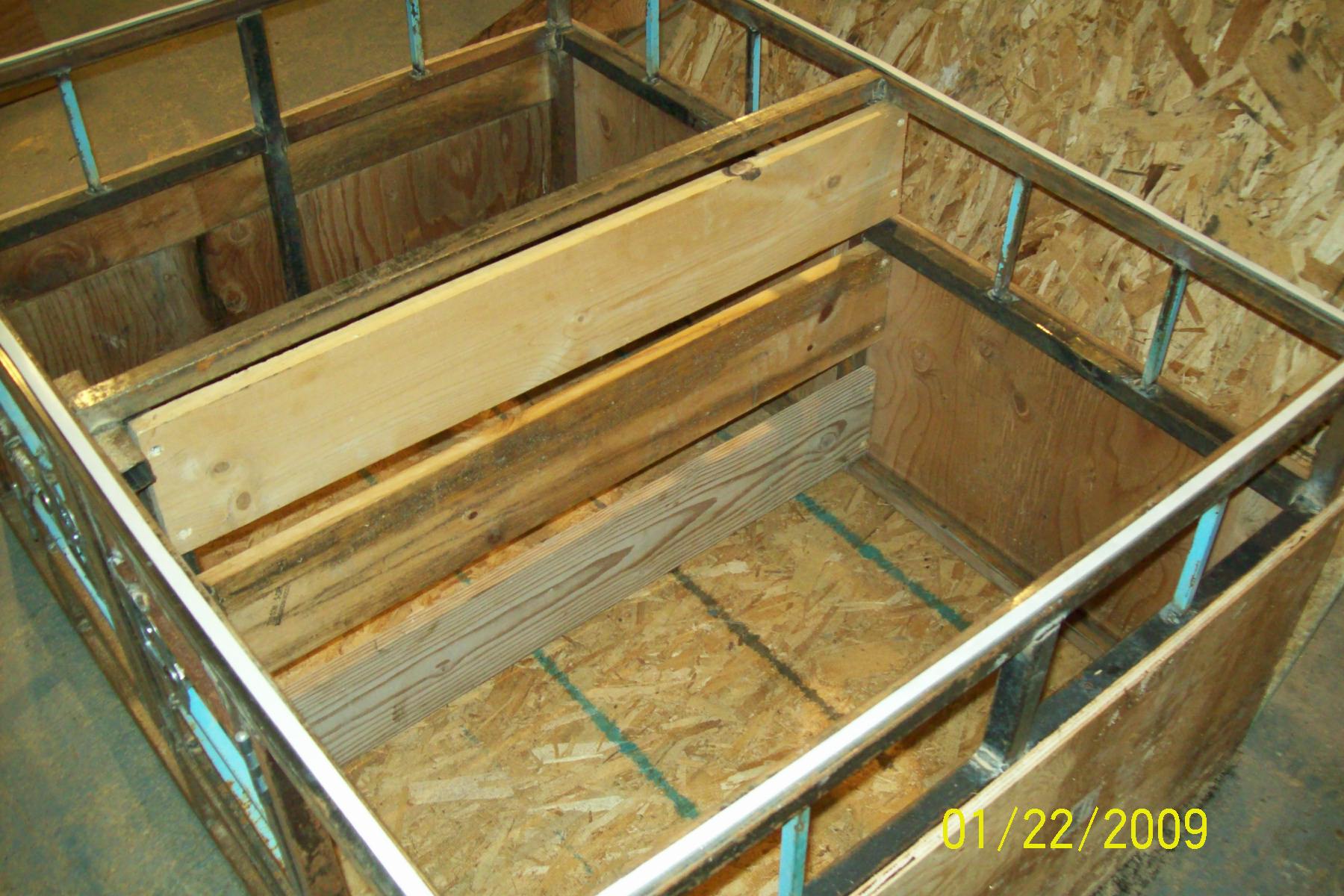

I made this box this winter. It is 4 feet wide, 3 feet deep. There are two compartments which are 2 feet by 3 feet each. The doors are held in place by normal 3 inch hinges and the latches are locking t latches. I used about 80 feet of 1 inch by 1/16 inch wall square tubing throughout with the exception of some 1/2 inch square tubing for the strike holes to keep the dogs in and on the doors. I used 1/2 inch plywood to cover the whole box and used 1 x 6 wood to separate the two compartments. I used self tapping screws to place 1/2 inch plywood over the strike holes during the cold months, but will change that this fall with pieces of 1/2 inch angle iron to slide plywood into and hold it in place. I am also working on a rigging rail which will be made out of 1 1/2 inch angle iron and 1 1/2 inch square tubing which will bolt to the box and be removable.

[unclefester]

[bassmaster1228]

before

after

[savage]

I built these two for the Rhinos

[savage]

heres one on my old toyota

[Thunder Struck]

heres mine.works well for me here in Maine.

[walkersrule]

heres mine. its just plywood with a steel door and rig rail. nothin special.



jimmy

[slickster03]

heres my box nothing to special

[Cowboyvon]

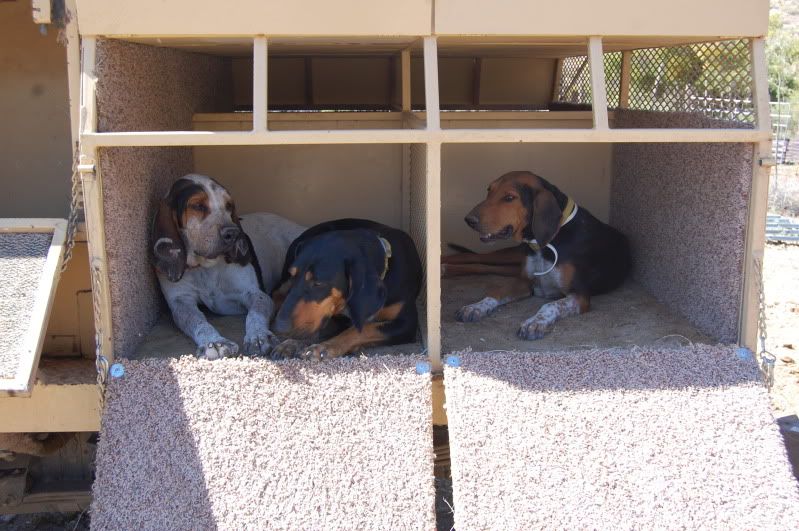

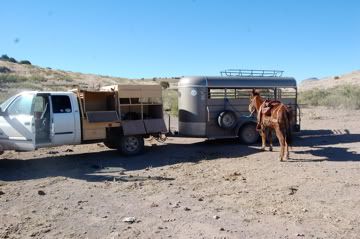

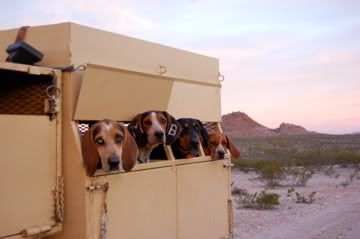

The front is a jump box for my stag hounds and the back is for my lion hounds..



I just measured everything and had all the metal bent and cut in town and then we welded it together in our shop. Its carpeted inside and the roof is insulated and there is storage on the top.
